[Dock-fans] Critical points docking

[Dmitry Osolodkin]

Scott Brozell wrote:
> Yes the sphere file format is correct according to
> http://dock.compbio.ucsf.edu/DOCK_6/dock6_manual.htm#SphgenCriticalPoints
> Yes I see no reason to rebuild grids.
>
> Dock 6.2 contains code to read and check critical points.
> It does not appear to be obviously wrong.
> However, there are no tests or examples that use critical points.
> I'm contacting other developers for the status of critical points.
>
> In the mean time you could try the alternative mentioned in
> http://dock.compbio.ucsf.edu/DOCK_6/dock6_manual.htm#CriticalPoints
> to determine whether your system is conducive to critical points.
>
Okay, I have deleted some critical points which seem unreasonable to use
for docking. Nevertheless, I haven't rebuilt the grids, so in the
docking run I have used a rather big box which only had spheres in one
corner. The best-scored orientation of the ligand was rather reasonable,
but the minimal distance between my ligand and critical points was about

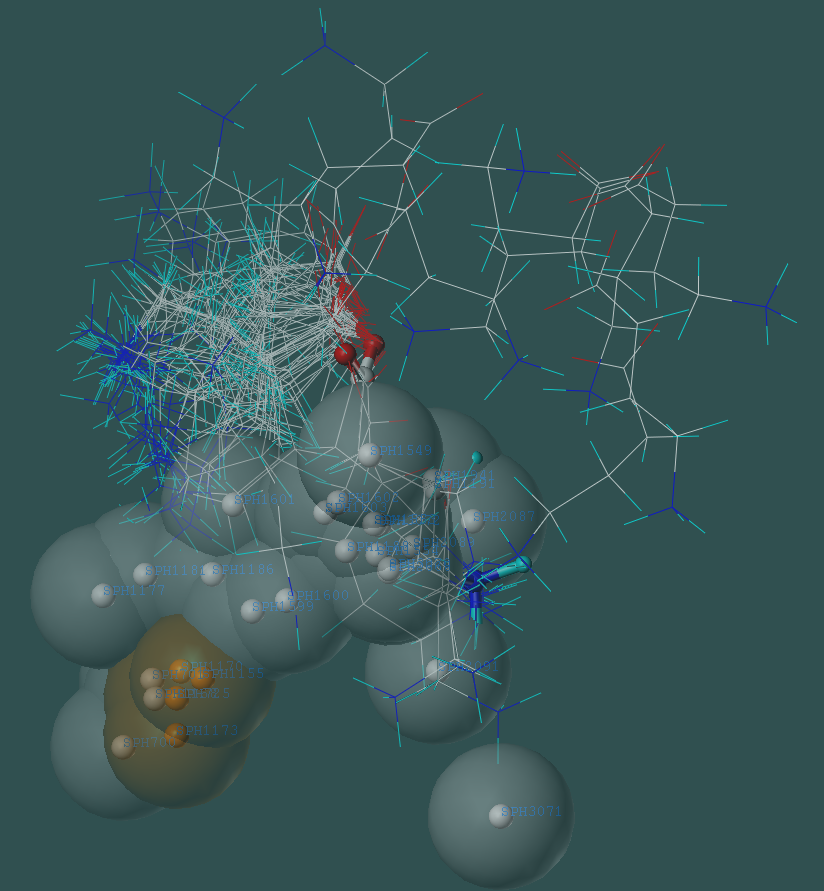

6 Å. This distance seems unreasonable. See
http://qsar.chem.msu.ru/~dmitry_o/cp.png (spheres are shown as balls and
transparent spacefill, critical spheres are orange, and the best scored
orientation is ball-and-stick (a part of it is hidden behind the spheres)).
Moreover, the primary conformations are positioned in the different
places of the box, and this positions are not directed by spheres. As
far as I understand the DOCK concept, it should suggest only
orientations defined by spheres, so if there is an empty box region
without the spheres and receptor atoms, there shouldn't be any ligand
atoms in this region. But in my case there are a lot of ligand
orientations which are not intersected with any sphere. Maybe the reason
is that my molecule is small and no anchor is defined during docking?
Third, after activation of the chemical matching feature on the same
four spheres, there were no difference between results obtained with
critical points, without critical points and with chemical matching. Is
it an algorithm problem?

Dmitry Osolodkin.
